Good Quality Dry Mortar And Putty Powder High Performance Standard Parts Automatic Air Flow Packing Machine Small Air Flow Packing Machine

1.0 Sets
MOQ
Good Quality Dry Mortar And Putty Powder High Performance Standard Parts Automatic Air Flow Packing Machine Small Air Flow Packing Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining
Showroom Location: Peru, Saudi Arabia, Indonesia, Russia, Kenya, Argentina, Chile, UAE, Sri Lanka, Romania, Kazakhstan, Malaysia
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: PLC, Gearbox, Motor, Pump
Condition: New
Application: Dry mortar and putty powder
Voltage: 220/380/400/415V
Power: 0KW
Dimension(L*W*H): 1100*650*1005 mm
Weight: 180 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Product name: Vacuum Air Flow Packing Machine
Mixer Type: SBD-2
Function: Package
Capacity: 5-10T/h
Packaging scope: 5-50kg/bag
Raw material: Stainless steel
Application scope: Dry Mortar Batch Plant
Advantage: High Output Lowcost
Worker Required: 1-2Workers Required
Overall Dimension(L*W*H): 1100*650*1005 mm
After Warranty Service: Video technical support, Online support
Local Service Location: Saudi Arabia, Pakistan, Mexico, Russia, Malaysia, Australia, Argentina, UAE, Algeria, Sri Lanka
After-sales Service Provided: Online support, Video technical support
Zertifizierung: CE,ISO
Grundinformation
Zertifizierung: CE,ISO
Zahlung und Versand AGB
Packaging Details: 1. 20GP/40HQ standard exporting container 2. FCL: Wire cables are used for fastening the machine on the trailer or inside the container. Cork wood are placed in front or behind the machine to protect it. Cork wood are placed in front or behind the machine
Supply Ability: 30 Set/Sets per Month
Produkt-Beschreibung
Model
The valve mouth packing machine
Type
Automatic weighing
Packaging scope
5-50kg/bag
Workers required
1-2 persons
Filling speed
6-10s/bag
Capacity
5T/H
Working method
Manual doing,Automatic weighing
Total weight
180kg
Overall Dimension(L*W*H)
1100*650*1005mm (L*W*H)

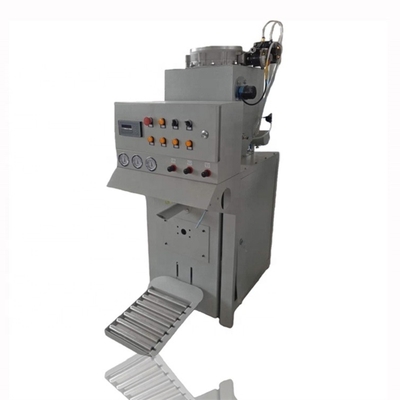

Vacuum Air Flow Packing Machine

Vacuum Air Flow Packing Machine is suitable for the packaging of powders with good fluidity or fine particles (≤5mm), using compressed air as power. The compressed air passes through the atomizer (air cushion) to fluidize the material in the closed container, so as to achieve the function of conveying and feeding.Pneumatic rubber valve is used for airtight, and the flow area of the valve is controlled to achieve the control of the feeding amount of the packaged materials, and to achieve effective and stable packaging accuracy and speed.It can be used for packaging thermal insulation mortar, bonding mortar, anti-cracking mortar, dry powder binder, self-leveling mortar, dry powder putty and other dry powder materials.
Features of air-flow packaging machine

1.The feed end is equipped with a pressure holding chamber, with a pneumatic butterfly valve or a pneumatic plug valve at the top, which ensures the filling rate of the pressure chamber and improves the reliability of the quantitative accuracy; 2. The equipment has a built-in dust collector, which reduces the dust in the environment, which is beneficial to the protection of the operator and the protection of the environment; 3. Fast packaging speed and stable accuracy; 4. Especially suitable for the packaging of building materials dry powder mortar
Components of full automatic valve bag packing machine

Frame, Power head, Motor, Control cabinet, Gauge Outfit, Discharge Port, Pallet, Cylinder, Barometer, Discharging switch, Weight measuring system.
Application

This kind of packing machine is widely used for filling and packing the dry powder materials, like: fly ash, coal powder, lime powder, mortar,cement and other materials.
Advantages

1.Automatic weighing and packing system, weighing accurately; 2.Small size and light quality, moving and installation conveniently; 3.Steady performance, easy to operate and maintenance; 4.High automation,saving labor and increase efficiency.
Henan Sparda Industrial Co., Ltd. is located in Xingyang Wulong Industrial Zone, Zhengzhou City, which is a collection of independent design, research and development, production, sales, as one of the professional machinery and equipment, dry mortar equipment, real stone paint mixer production line, packaging machine. Our factory has 15 years of design and development experience, in the quality of survival, to the credibility of security, to service first, widely received by the industry.Our factory's products have been exported to Asia, Africa, North America, South America, such as: Kazakhstan, Armenia, Malaysia, Romania，Russia， and other countries, well received by foreign customers!
