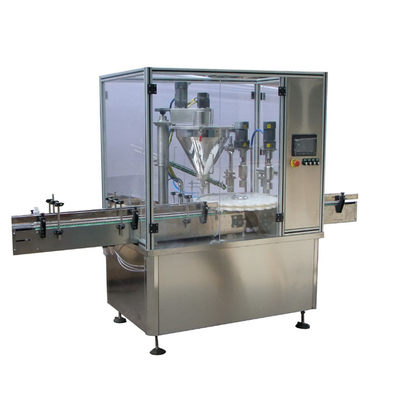

FZ-1 Automatic Cans filling and capping machine for packing powderne
Bottle feeder
Introduction and Picture reference
This bottle feeding system is applicable to all kinds of cylindrical bottles. It is highly featured by high speed and stable performance. It is always used with the packing line. Besides, the feeding speed is adjustable. If the bottle material is easy to be damaged by the steel surface, we will recommend to add a plastic coating which makes the surface very smooth.
II.Technical parameter
1. Power: AC220V/50Hz Customized
2. Variable-frequency and variable-speed Motor Rate: 120W
3. Rotating speed: 0-48 r/min (adjustable)
4. Diameter of rotary table: 800MM 304 Stainless steel Thickness:3MM.
5. Weight: 50KG.
Automatic Powder Filling Machine
Introduction
Application |
Cylindrical bottles (glass & plastic& paper) |
Filling material |
Powder, and small granules (make-up powder, curry, powder, coffee powder, detergent powder, fertilizer ect) |
Feeding and Filling method |
auger type. The auger is controlled by horizontal motor and servo motor |
Filling system cleaning |
Quick-couplings, cleaned by water |
Cap feeding way |
Automatic vibrator + mechanical hand (SUS304, polished treatment) |
Working flow |
Bottle feeding + 1 nozzle filling + automatic cap feeding +automatic cap screwing or pressing + conveying out for packing |
Features and performance of FZ-1
1. Compact structure, reasonable design, and smooth operation
2. Imported Siemens PLC to control servo motor to ensure a high precision
3. SS304 spiral elevator to conveyor the powder to the hopper
4. The powder feeding volume is controlled by time by the servo motor
5.The stainless steel auger is processed by imported CNC, good accuracy
6. GMP manufacturing standard. All parts in connection with filling powder are made from high quality stainless steel.
7. The powder filling and feeding system is all assembled by quick couplings, which makes the cleaning easy and time-saving.
8. The caps are feeded by a coated vibrator. It has a hairy backer sticked on the surface, so the shiny caps can be well-protected.
9. Filling and capping is not working in absence of bottles and caps
10. The working speed of the machine is adjustable
Technical Parameter
1 |
Total rate |
3KW |
2 |
Power supply |
220V, 50Hz, 1P (or 110V, 60Hz, 1P) |
3 |
Filling nozzle |
1 |
4 |
Filling range |
80-200g |
5 |
Filling error |
±1% |
6 |
Working speed |
10~25pcs/min |
7 |
Hopper Size |
25L, 102mm 100L |
8 |
Air Consumption |
0.3~0.5MPa |
ONE-YEAR warranty period for whole machine except of tubes and human factors etc, 18 months from the date when you received machine or 12 months when installation finished;
Consultant services for whole machine life, 24 hours technical support by email;
Call us during working time;
UPS-friendly English Soft-ware, user manual and send expericed technicians for installaton&debugging.
