Food Aluminum Foil Rte Thermoformer Double Sided Packaging Machine For Ready Made Food

1.0 Sets
MOQ
Food Aluminum Foil Rte Thermoformer Double Sided Packaging Machine For Ready Made Food
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Type: Packaging Line
Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops, Other
Showroom Location: United States, Pakistan, Colombia
Condition: New
Application: Food
Packaging Type: Film, Foil
Packaging Material: Plastic, Stretch film
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/50HZ, 380V/50HZ
Dimension(L*W*H): 6850*1130*2000mm
Weight: 3000kg, 3000kg
Warranty: 5 years
Key Selling Points: Automatic
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 5 years
Core Components: Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox
Width of Top Film: 500mm
Width of Bottom Film: 523mm
Vacuum Degree: ≤200Pa
Compressed Air: ≥0.6Mpa
Capacity: 1-6 cycle/min
Cooling Water: ≥0.15Mpa
Power: 14~20KW
Dimension: 6850*1130*2000mm
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: United States, Brazil, Peru, Pakistan, Mexico, Argentina, Chile, Colombia
After-sales Service Provided: Online support, Video technical support, Free spare parts
Zertifizierung: ISO, CE
Grundinformation
Zertifizierung: ISO, CE
Zahlung und Versand AGB
Produkt-Beschreibung

Warm hint:

1 -- Because the exchange rate is changing, the specific price of the machine will also change. 2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution. 3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.

Advantage

--- High production output --- Reduce consumption of package material --- Easy to operate --- Save man power --- Food more healthy --- Totally customized
Products Description

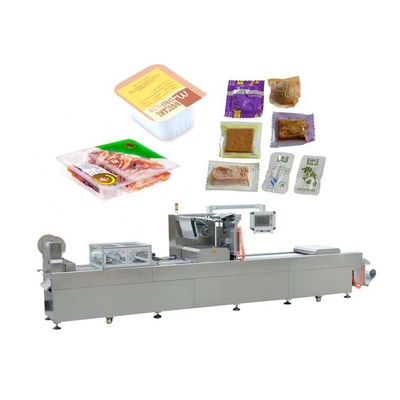

Full-automatic Thermoforming Packaging Line

Suitable for various kinds of food, such as fish tofu,single piece of bean curd,double pieces of bean curd, areca-nut,spicy food,meat,seafood,fruits and vegetables,pickles,chilled meat, and medicine products,hardware components,medical equipment etc.
Machine Data
Model
LTRC-420
LTRC-520
Width of Top Film
400
500mm
Width of Bottom Film
423
523mm
Vacuum Degree
≤200Pa
≤200Pa
Compressed Air
≥0.6Mpa
≥0.6Mpa
Capacity
4-6 cycle/min
4-6 cycle/min
Cooling Water
≥0.15Mpa
≥0.15Mpa
Voltage
380V/50HZ
380V/50HZ
Total Power
14~20KW
14~20KW
Dimension
6850*1130*2000mm
6850*1130*2000mm
Machine Weight
2250kg
3000kg
Warranty
5 year
Focus on details
01. Photoelectric detection film
Photoelectric version use magnetic powder computer feedback automatic stretching, punctuation length can be controlled within 0.5mm, without adjustment, automatic calibration punctuation, the version time can be completed within 5 minutes, easy operation.
Equipped with (German Ske) light control, correction; equipped with PLC programs.
02. Upper film Positioning
Use pneumatic left and right correction, to ensure that not shifting the location, sealing edge will not appear white line.
03. Inflatable film Shaft

04. Heat Sealing
Use ∮ 100mm cylinder to push the four-way lever swing arm, drive forming, heat sealing device. Increase the intensity for making the mold steady in up and down position, balance in left and right position.
05. Moving printing Device

06. Entirety Silica Gel Heat Sealing
Heat sealing cavity use high-quality alloy aluminum, dual-channel vacuum, high vacuum strength and degree. Use ∮ 100mm cylinder to push the seal, make sealing clear and solid. Equipped with imported whole silicone, small size, strength, high temperature.
Features
1. Japan Yaskawa servo motor, HMI, PLC control etc. high speed and high precision. 2.Photoelectric tracking system, ensure alignment position. 3.Easy to change the mold, suit for several size products, and the mold with cooling system. 4.Coding system, Ink jet printer etc for option. 5.Vacuum packaging, or Nitrogen filling or mixed gas packaging. 6.German imported vacuum pump, high vacuum degree, stable, durable and reliable 7.Imported open-ended chain, servo motor drive chain, suit for kind of Soft film, semi-hard film and hard film 8.Automatic wasted film recycling system 9.Advanced cutting, slitting systems, and easy to change.
Company Introduction
Our Company
Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer? A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line. Q: Is engineer available to serve oversea? A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end. Q: How can we make sure about the machine quality after placing the order? A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China. Q: We are afraid you won't send us the machine after we send you the money? A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
