Characters:

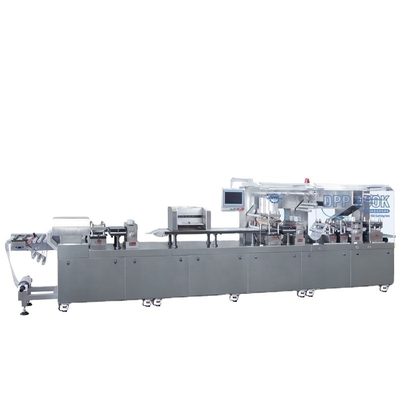

This machine is a high-speed flat blister packaging machine with the fastest speed manufactured by us, and its running speed can reach 150 cuts/min stably (standard version). The strongest and latest SIEMENS Brand full-movement computing control system is adopted on this machine, and moreover, this machine integrates phosgene and has coaxial station. The station of the euipment is operated flexibly and intelligently.
This machine has 3 main independent stations ( Forming, heat-sealing, batch number & Impression and Cutting) and front-tier horizontal arrangement structure consisting of 2 main big frames, both of which are compeleted by the motion computer control system respectively.
Main Technical Parameter
Blanking frequency (standard version) | AL/PVC: 150 cuts/min AL/AL: 60 cuts/min | |
Maximum molding area and depth |
(AL/PVC): 200*300*15mm (AL/AL): 200*300*12mm |
|
Travel range | 30-120mm | |
Specification of Blister | 57*90mm | |
Packaging material (the roller Dia. is φ75mm) |
Nontoxic PVC hard piece | (0.15-0.4)*310*φ600mm |
Heat-seal aluminum foil | (0.02-0.15)*310*φ300mm | |
Forming aluminum foil | (0.16-0.2)*310*φ600mm | |
Heat-seal Dialyzing Paper | (50-100)g/m2*310*φ300mm | |
Power supply and total power | 380V 50HZ 16.2KW | |
Capacity of air pump | ≥0.25m³/min 0.6-0.8Mpa | |
Mould cooling | Circulating water 60-100L/h | |
Overall Dimension (L*W*H) | 5610*800*1740mm Can be packed separately | |
Total weight |
About 3000kg |
Q: Are you really a manufacturer? Where is your factory? How can I visit your factory?
A: Sure, we are a source manufacturer, Zhejiang Jiangnan Pharmaceutical Machinery Co.,Ltd. SINCE 1997. Our factory is located In Rui'an city, Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know if your machine is designed for my product?
A: Don't worry, you can send us your rough draft or product design. We will confirm with engineers and designers. After the machines are done, we will take videos and clearer pictures for you. We can also show you on-line by video chatting. And the machines will be adjusted well before shipment.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and ensure our service for you.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Overseas technical support is available. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How to contact you?
A: You can click at the "contact supplier" to contact online persons. We are always here for you.
Need more machines details and videos? Please contact us directly!
