Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Type: Blister Packaging Machine

Applicable Industries: Food & Beverage Factory, medicine

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: PLC, Gearbox, Gear

Condition: New

Application: Medical

Automatic Grade: Automatic

Driven Type: Hydraulic

Voltage: 380v/220

Dimension(L*W*H): 1400*460*950mm

Weight: 450 KG

Warranty: 1 Year

Key Selling Points: High-accuracy

Product Name: dpp80 blister packing machine

Keyword: Automatic Capsule Blister Packing Machine

Packing Material: PVC.PP.PET

Capacity: 1200 Plate/h al-al 2400plate/h al-plastic

Function: High Effieciency

Machine Type: High Frequency PVC Blister Packing Machine

Item: Blister Packing Machine Change Part

Usage: Card+blister+card Sealing

PVC Sheet: Thickness(0.25-0.5)*with 120mm

Max formed area: 110*80mm

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Zertifizierung: iso ce

Grundinformation

Zertifizierung: iso ce

Zahlung und Versand AGB

Packaging Details: Export standard wooden packaging

Supply Ability: 100 Set/Sets per Month

Produkt-Beschreibung

Mini Oil Paste Sauce Butter Cheese Ketchup Honey Liquid Chocolate Aluminum Foil Jam Blister Packing Machine Small

Product Application

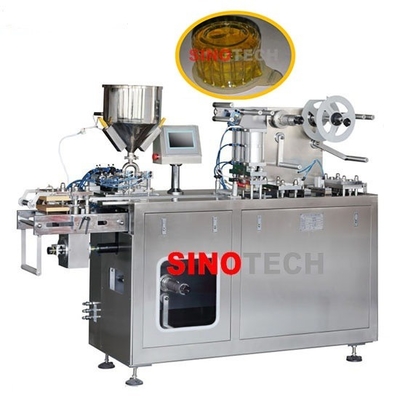

The DPP80 Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc

Technical parameters

Model	DPP80 Blister packing machine
Cutting Frequency	Al-Al: 6-20 times/min Al-plastic: 20-40 times/min
Maximum Production Capacity (Blister/h)	Al-Al: 1200 (standard plate) Al-plastic: 2400 (standard plate )
Maximum Forming Area and Depth (mm)	Al-Al: 90×70×14 Al-plastic: 110×80×26 (Standard 70×90×14)
Travel Range (mm)	20-100 (Can be manufactured as user's requirements)
Air Pressure (Mpa)	0.4-0.6
Standard Plate (mm)	80×57 (Can be manufactured as user's requirements)
Total Power	380V/220V 50Hz 1.8kw
Main Motor Power (kw)	0.55
PVC Rigid Sheet (mm)	0.15-0.5×90
PTP Aluminum Foil (mm)	0.02-0.035×90
Dialysis Paper (mm)	50-100g×90
Mould Cooling	Tap Water or Circulating Water
Overall Dimensions (mm)	1400×460×950(L×W×H)
Weight (kg)	450

Detail picture

Forming Filling

Pump Sealing

Main features

1: It can automatically finish forming, filling, packing, sealing , printing and blister cutting in one machine.

2: With cursor positioning system that can keep Printing at center of whole blister as standard

3: Filling Amount is adjustable at 5-25g (adjustable by users )

4: The bottom film which can use in this machine is thermoformable, heat sealable semi-rigid film and rigid film such PP, PE, PET,PVC and so on.

5: By Changing mould , one machine can pack different kind and size blister

Contact us

Contact person :Susan Guo

Mobile phone: 0086 139 4197 7284

Whatsapp: 0086 139 4197 7284

Wechat: 139 4197 7284

Skype: belinda6454
