DPT-80 Timing DPT-80 Flat Plate Honey Blister Packing Machine Price /blister Packing Machine High Speed ​​Tablet

1.0 Units
MOQ
DPT-80 Timing DPT-80 Flat Plate Honey Blister Packing Machine Price /blister Packing Machine High Speed ​​Tablet
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Type: Blister Packaging Machine
Condition: New
Application: Chemical, Medical
Automatic Grade: Automatic
Driven Type: Electric
Voltage: Customized
Dimension(L*W*H): 980(L)x480(W)x980(H) mm
Weight: 230kg
Warranty: 1 Year
Product Name: blister packing machine
Capacity: 20,000-50,000 pcs/hour
Punching frequenc: 30 times/min/plate each punching
Plate size: 90x80 mm(designed according to customers' requirement)
Power supply: AC, 220V/50-60 HZ, 1 phase
Feature 1: Synchronization
Feature 2: stable cooperation
Feature 3: easy to replace the mould
Feature 4: low cost
Feature 5: needn't to equip Auxiliary unit
Zertifizierung: CE ISO9001
Grundinformation
Zertifizierung: CE ISO9001
Zahlung und Versand AGB
Packaging Details: Standard export packing or customized
Supply Ability: 10 Unit/Units per Week blister packing machine
Produkt-Beschreibung

Product Description

DPT-80 high speed flat plate Honey Blister Packing Machine price /blister packing machine tablet

———Descriptions———

DPT-80 high speed flat plate Honey Blister Packing Machine price /blister packing machine tabletDesigned by our company earliest and produced at

largest batch process, DPT-80 mini-type Bubble-cap packing machine is the smallest, lightest,

cheapest and energy consumption Lowest packing equipment among the similar mode both

in domestic and abroad.

This machine is widely suitable for new product preparation room of pharmaceutical section

Of people’s hospital, small pharmaceutical factory, drug rest. It’s also suitable for aluminum

Sculpture packing of capsule, sugarcoating tablet and plain tablet medicine or improvement

packing of special specification.

This machine can continually and automatically complete the packing proceedings, is blister

cap form-taking, medicine-feeding, heat sealing, printing lot no, and cutting into format. It Has

advantage as compact structure, full function, gear wheel working, and accurate

Synchronization, stable cooperation, easy to replace the mould, low cost and needn’t to equip

Auxiliary unit. Turn on power and connect it with cooling water, you can produce in a large scale.

———Technical Parameters———

Item/model

DPT-80

Capacity

20,000-50,000 pcs/hour

Punching frequency

30 times/min/plate each punching

Plate size

90x80 mm(designed according to customers’ requirement)

Packing material

PVC hard piece: width: 65-90 mm, thickness: 0.25-0.30 mm

Bore diameter of roll shaft: 60-70 mm

PTP aluminum foil: width: 65-70 mm, thickness: 0.02-0.025 mm

Bore diameter of roll shaft: 60-70 mm

Power

1.5 KW

Power supply

AC, 220V/50-60 HZ, 1 phase

Overall size

980(L)x480(W)x980(H) mm

Weight

230 kg

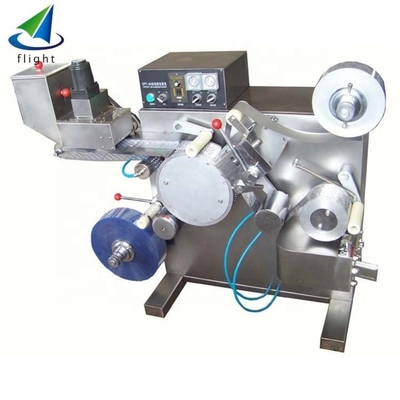

———Product image———

——Our Company——

Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of

various pharmaceutical machineries in China. Our company has profuse designs with series

quality grade, and expressly, our price is very competitive, because we are manufactory.

Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000

quality system attestation, accord with GMP attestation request. All tasks from casting to

metal machining, and general assembly are accomplished ourselves.

We produce and export various pharmaceutical machineries, relevant medicament detecting

instruments and packing machinery, such as Rotary tablet press, Single punch tablet

press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling

machine, Capsule filing machine, Blister packing machine, and so on.

We have professional export office, with an experienced and professional team, they will

service in whole business. By excellent quality, reasonable price and perfect after-service,our

products have been sold in many countries and regions all over the world, Such as United

States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand

and Vietnam etc, these products are very popular with the customers there.

Try to do everything, let customer satisfaction, this is our company’s service tenet.

<<Welcome new and old customers come to discuss business>>

——Certificate——
