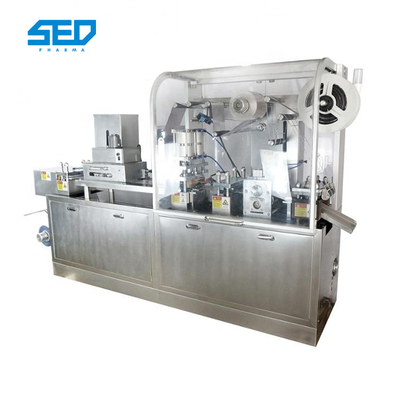

Automatic Tablet Pill Softgel Capsule Blister Pharmaceutical Hot Sealing Blister Packing Machine

1 Set
MOQ
$10,000.00(>=1 Sets)
Preis
Automatic Tablet Pill Softgel Capsule Blister Pharmaceutical Hot Sealing Blister Packing Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Type: Blister Packaging Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Engine, Motor
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V 30HZ
Dimension(L*W*H): 2500x570x1430mm
Weight: 1500 KG, 1500 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Driving Length: 30-110 mm
Dimension (mm): 2500x570x1430
Sealing Foil: 160x(0.02-0.04) mm
Forming Film: 160x(0.1-0.5) mm
Air Consumption: ≥0.4 m^3/min
Max. Forming Area: 150x100x25 mm
Power: 6.5 KW
Output Capacity(ALU-PVC): 1000-6000 pcs/h
Punching Frequency(ALU-PVC): 10-50 t/min
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Video technical support, Online support
Zertifizierung: CE
Grundinformation
Zertifizierung: CE
Zahlung und Versand AGB
Packaging Details: wooden case
Produkt-Beschreibung
Product Description

The blister packing machine is designed for pharmaceutical, nutritional, food, chemical industries. It has the function of packaging, detecting, rejecting.


It adopts PLC control system, touch screen interface, frequency converter system, which makes the machine running more stably and enhancs the machine life time. The machine can use ALU-PVC, ALU-ALU, PVC-PAPER material for blister packaging. It meets GMP standard.

Punching Frequency
ALU-PVC
10-50 t/min
ALU-ALU
10-25 t/min
Output Capacity
ALU-PVC
1000-6000 pcs/h
ALU-ALU
1000-3000 pcs/h
Driving Length
30-110 mm
Max. Forming Area
150×100×25 mm
Air Consumption
≥0.4 m³/min
Forming Film
160×(0.1-0.5) mm
Sealing Foil
160×(0.02-0.04) mm
Voltage
Customized
Power
6.5 KW
Weight
1500 KG
Dimension (mm)
2500×570×1430
Products Show
Through mold guide rod
Insert the aluminum film into the through-mold guide rod to fix the aluminum film, which is conducive to smooth filming
Blanking cutter
Punch the sealed and stamped blister board according to specifications
The feed opening
Material inlet, with unloading motor and speed regulator
PVC Former
Heating makes PVC material shape, the mold can be replaced according to actual needs
Feature

1. The travel scope is adjustable, and the mold is located in the groove for easy mold change.

2. Automatic feeding system, the mold and feeder can be designed based on different products.

3. It can use easy tearing line pressing device, batch printing device, waste collecting and eye mark tracing device.

4. The heating molds separate automatically when the machine stopped, which protect the packaging material and increased the machine life time.
