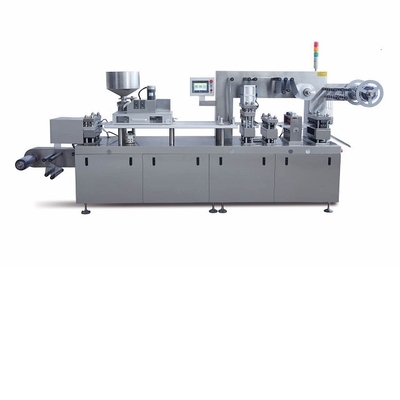

Product Name | HIGH-SPEED AL-PLASTIC BLISTER PACKING MACHINE |
Cutting Frequency | 25-60Times/min |
Production Capacity | Alu-plastic:6000-14000 pcs /h |
Adjustable range of stroke | 30-120mm |
Max. Forming Area | 250×180mm |
Max. Forming Depth | 20mm |
Main Motor Power | 1.5kw |
Volume flow of air pump | 0.4-0.6Mpa |
Air pressure of air pump | ≥0.2m3/min |
Total Voltage | 380V/220V 50Hz 8.5KW |
RIGID PVC FILM | (0.25-0.5)×260mm |
PTP ALUMINUM FOIL | (0.02-0.035)×260mm |
Dialysis Paper | 50-100g×260mm |
Mould Cooling | Tap water or circulating water |
Overall Dimensions | 4460×760×1620mm |
Weight | 1850KG |
Ansprechpartner : | Lin |
---|
